SMD 3528 LED Strip Lights Manufacturer
2400K,2700K, 3000K, 4500K, 6500K
Yüksek Renksel Geriverim İndeksi(CRI>80 CRI>90)
IP33,IP55,IP65,IP67 Su geçirmez versiyon
Giriş DC12V, DC24V Sabit Gerilim Versiyonu
Different types of SMD3528 led strips for options
LED Brand: Epistar 3528 LED
CE ETL ROHS
Professional 3528 LED Light Strip Manufacturer
Lightstec is one of the best 3528 LED strip light manufacturer in China. Lightstec 3528 LED strip light series is high brightness led strip light. 20ma,7-8lm each led. Ra80 and Ra90 were available. DC12V and DC24V vision. 60led/m 4.8W LED strip light is widely used in hotels, shopping malls, kitchen illumination. The customized length and customized design are warmly welcome. We would like your sourcing led light from us.

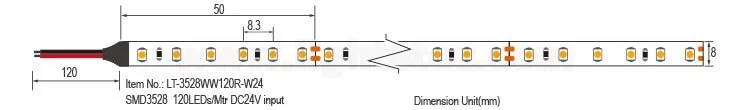

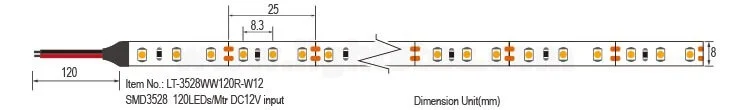

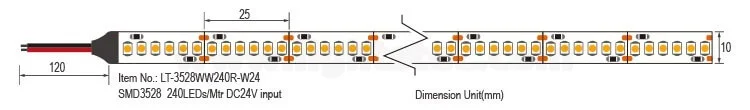

| Model numarası | LT-3528WW60R-W12/24 | LT-3528WW120R-W12/24 | LT-3528WW240R-W24 | LT-3528WW240R-W24 (çift hat) |
|---|---|---|---|---|
| SMD Tipi | Epistar 3528 | Epistar 3528 | Epistar 3528 | Epistar 3528 |
| Giriş voltajı | DC24V/DC12V | DC24V/DC12V | DC24V | DC24V |
| LED Adeti | 60LED/m | 120LED/m | 240LEDs/m | 240LEDs/m |
| Power/m | 4.8W/M | 9.6W/M | 19.2W/M | 19.2W/M |
| Max current / LED | 20mA | 20mA | 20mA | 20mA |
| SMD LED aralığı | 16,6 mm | 8.3mm | 4.2mm | 8.4mm |
| Lümen / m(Maks.) | 420-480LM | 840-960LM | 1680-1920LM | 1680-1920LM |
| CRI(Ra) | >90Ra>80Ra | >90Ra>80Ra | >90Ra>80Ra | >90Ra>80Ra |
| Minimum kesilebilir uzunluk | 100mm (3LED 12V) 50mm (6LEDs 24V) | 50mm (3LED 12V) 25mm (6LED 24V) | 25mm (6LED 24V) | 50mm (6LEDs 24V) |
| PCB Genişliği | 8 mm | 8 mm | 10 mm | 15mm |
| Enerji derecesi | A | A | A | A |
| Garanti | 3 yıl | 3 yıl | 3 yıl | 3 yıl |
| Çalışma saati | 30000 saat | 30000 saat | 30000 saat | 30000 saat |
| Aydınlatma Açısı | 120° | 120° | 120° | 120° |
| Çalışma sıcaklığı | .-20°C~+45°C | .-20°C~+45°C | .-20°C~+45°C | .-20°C~+45°C |
Types of 3528 LED Strip Lights
Basit karşılaştırma teknik listesi
| Model numarası | LED Adeti /Metre | LED Rengi Mevcut | Maksimum Güç /Metre | Giriş Gerilim | Min. kesilebilir Uzunluk | SMD LED'i Aralık | Maksimum Akım /NEDEN OLMUŞ | PCB Genişliği Mevcut |
|---|---|---|---|---|---|---|---|---|
| LT-3528WW60R-W12/24 | 60 | 2400-8000K, kırmızı, yeşil, mavi | 4.8 | 12V | 100 mm | 16.6MM | 20ma | 8 mm |
| 24V | 50 mm | |||||||
| LT-3528WW120R-W12/24 | 120 | 2400-8000K, kırmızı, yeşil, mavi | 9.6 | 12V | 50 mm | 8.3MM | 20ma | 8 mm |
| 24V | 25mm | |||||||
| LT-3528WW240R-W24 | 240 | 2400-8000K, kırmızı, yeşil, mavi | 19.2 | 24V | 25mm | 4.2MM | 20ma | 10MM |
| LT-3528WW240R-W24 (çift hat) | 240 | 2400-8000K, kırmızı, yeşil, mavi | 19.2 | 24V | 50 mm | 8.3MM | 20ma | 15MM |
3528 LED Strip Light Accessories
Su Geçirmez Olmayan Tipler Led Şerit Işık Konektörü
+ 2pin-Köşe-tek renkli konnektör
2 pinli kablosuz tek renkli konektör
L-2pin-Köşe-tek renkli konnektör
T-2pin-Köşe-tek renkli konnektör
2pin-çift kafalı Konnektör tek renk
Dişi-erkek konnektör
2pin-Kablosuz-konektör n8bb
LED Şerit Tutma Klipsleri
Su Geçirmez Tipler Led Şerit Işık Konektörü
2pin-Kablosuz konnektör tek renkli su geçirmez
2 pinli tek kafalı konnektör su geçirmez
LED-su geçirmez-DC konektörü su geçirmez
Silikon klipsler
Importing SMD3528 led strip lights from China: The Definitive Guide
When you are sourcing SMD3528 led strip light manufacturer from China, you need to look for a reliable supplier
Here are some experiences and basics knowledge about SMD3528 led strip light.
This is guide is good for you.
What is SMD3528 led strip light?

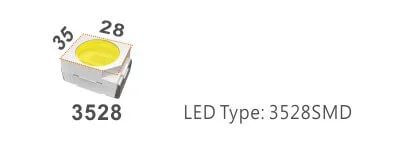

SMD3528 led strip light is made by SMD3528 led chips.
The size of SMD528 is 3.5MM*2.8MM, 0.06W/PCS,6-8lm/pcs.
SMD3528 led strip light is a very long used history led strip light.
It is widely using in-home lighting, cabinet lighting, car lighting, etc.
Where are SMD3528 led strip light most suitable using in?
From the date sheet we know SMD3528 power is small,0.06w/pcs,6-8lm/pcs.
Normally we have 60led/m-4.8w/m, 120led/m-9.6w/m,240led/m-19.2w/m.
Power per meter, not big means, not very brightness. Then we use less in main lighting.
SMD3528 led strip light is used more in small place detail lighting.
Such as cabinet lighting, shelf lighting, cupboard lighting, wardrobe lighting, etc.
SMD3528 VS SMD3014 VS SMD2835 VS SMD5630 VS SMD5050
Different led chips, the size, wattage, lumens are different. We can see from the following table. Then it will easy for us to know the difference.
| Lightstec LED | Dimensions | Chip Surface Area | Lumen Flux | Power Draw |
|---|---|---|---|---|
| SMD3528 LED | 3.5 mm x 2.8 mm | 9.8 mm² | 6-8 lumens | 20-30 mA @ 2.8-3.4 Volts |
| SMD2835 LED | 2.8 mm x 3.5 mm | 9.8 mm² | 20-28lumens | 60 mA @ 2.8-3.4 Volts |
| SMD5050 LED | 5.0 mm x 5.0 mm | 25 mm² | 16-22 lumens | 60 mA @ 2.8-3.4 Volts |
| SMD5630 (5730) LED | 5.6 mm x 3.0 mm | 16.8 mm² | 45-50 lumens | 150 mA @ 2.8-3.4 Volts |
| SMD3014 LED | 3.0 mm x 1.4 mm | 4.2 mm² | 9-11 lumens | 30 mA @ 2.8-3.4 Volts |
Does SMD3528 LED strip light to have waterproof led strip light?
We offer different waterproof grade SMD3528 led strip light.
IP20 / IP33 -Not waterproof, this only use for indoor
IP55- Silicon surface dropping waterproof. This is changing the lighting vision. We also use this indoor.
IP65- Silicon tube waterproof. We suggest using this raining but don't drop into the water.
IP67/68 - This can use for swimming pool
You can check our other post about su geçirmez led şerit ışık.
Do you offer dimmable SMD3528 led strip light?
Now many lighting projects needs dimmable function. All of our SMD3528 led strip lights are constant voltage led strip light.
And we can use the different dimmable controller to dim the SMD3528 led strip light.
Now, we also can use the dimmable power supply to dim the SMD3528 led strip light.
Here I show you how to dim the strip light. You can check post How to dim led strip light.
How to connect SMD3528 led strip light to the power supply?
When we are using the SMD3528 led strip light, we need to use a led power supply.
Aydınlatma projelerinden bazılarının karartma işlevine ihtiyacı varsa, kısılabilir güç kaynağına veya kısılabilir kontrol cihazına da bağlanmamız gerekir.
Burada size şerit ışığını güç kaynağına nasıl bağlayacağınızı gösteriyoruz.
