SMD 3528 LED Strip Lights Manufacturer
2400K,2700K, 3000K, 4500K, 6500K
High Color Rendering Index(CRI>80 CRI>90)
IP33,IP55,IP65,IP67 Waterproof version
Input DC12V, DC24V Constant Voltage Version
Different types of SMD3528 led strips for options
LED Brand: Epistar 3528 LED
CE ETL ROHS
Professional 3528 LED Light Strip Manufacturer
Lightstec is one of the best 3528 LED strip light manufacturer in China. Lightstec 3528 LED strip light series is high brightness led strip light. 20ma,7-8lm each led. Ra80 and Ra90 were available. DC12V and DC24V vision. 60led/m 4.8W LED strip light is widely used in hotels, shopping malls, kitchen illumination. The customized length and customized design are warmly welcome. We would like your sourcing led light from us.
| Model No | LT-3528WW60R-W12/24 | LT-3528WW120R-W12/24 | LT-3528WW240R-W24 | LT-3528WW240R-W24 (double line) |
|---|---|---|---|---|
| SMD Type | Epistar 3528 | Epistar 3528 | Epistar 3528 | Epistar 3528 |
| 入力電圧 | DC24V/DC12V | DC24V/DC12V | DC24V | DC24V |
| LED Q'ty | 60LEDs/m | 120LEDs/m | 240LEDs/m | 240LEDs/m |
| Power/m | 4.8W/M | 9.6W/M | 19.2W/M | 19.2W/M |
| Max current / LED | 20mA | 20mA | 20mA | 20mA |
| SMD LED spacing | 16.6mm | 8.3mm | 4.2mm | 8.4mm |
| Lumen / m(Max) | 420-480LM | 840-960LM | 1680-1920LM | 1680-1920LM |
| CRI(Ra) | >90Ra>80Ra | >90Ra>80Ra | >90Ra>80Ra | >90Ra>80Ra |
| Minim cuttable length | 100mm (3LEDs 12V) 50mm (6LEDs 24V) | 50mm (3LEDs 12V) 25mm (6LEDs 24V) | 25mm (6LEDs 24V) | 50mm (6LEDs 24V) |
| プリント基板の幅 | 8mm | 8mm | 10mm | 15mm |
| Energy grade | A | A | A | A |
| Warranty | 3years | 3years | 3years | 3years |
| Working hour | 30000h | 30000h | 30000h | 30000h |
| Illumination Angle | 120° | 120° | 120° | 120° |
| Working temperture | .-20℃~+45℃ | .-20℃~+45℃ | .-20℃~+45℃ | .-20℃~+45℃ |
Types of 3528 LED Strip Lights
Simple compare technical list
| Model No | LED Q'ty /Meter | LED Color Available | 最大出力 /Meter | Input 電圧 | Min cuttable Length | SMD LED Spacing | Max Current /LED | プリント基板の幅 Available |
|---|---|---|---|---|---|---|---|---|

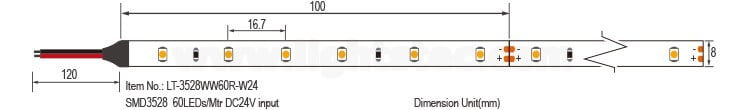

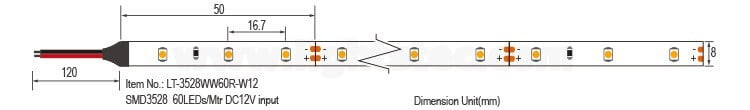

| LT-3528WW60R-W12/24 | 60 | 2400-8000K, red,green,blue | 4.8 | 12V | 100mm | 16.6MM | 20ma | 8mm |
| 24V | 50mm | |||||||

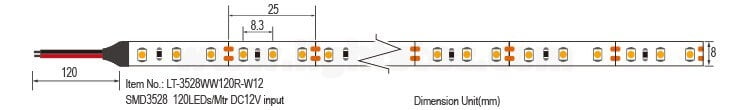

| LT-3528WW120R-W12/24 | 120 | 2400-8000K, red,green,blue | 9.6 | 12V | 50mm | 8.3MM | 20ma | 8mm |
| 24V | 25mm | |||||||
| LT-3528WW240R-W24 | 240 | 2400-8000K, red,green,blue | 19.2 | 24V | 25mm | 4.2MM | 20ma | 10MM |
| LT-3528WW240R-W24 (double line) | 240 | 2400-8000K, red,green,blue | 19.2 | 24V | 50mm | 8.3MM | 20ma | 15MM |
3528 LED Strip Light Accessories
非防水タイプ LEDストリップライトコネクタ
+ 2ピン-コーナー-単色コネクタ
2ピンワイヤレス単色コネクタ
L-2pin-コーナー-単色コネクタ
T-2pin-コーナー-単色コネクタ
2ピンダブルヘッドコネクタ単色
メス-オス-コネクタ
2ピンワイヤレスコネクタn8bb
LED ストリップ ホールド クリップ
防水タイプ LED ストリップ ライト コネクタ
2pin 無線コネクタ 単色防水
2ピンシングルヘッドコネクター防水
LED防水DCコネクタ防水
シリコンクリップ
Importing SMD3528 led strip lights from China: The Definitive Guide
When you are sourcing SMD3528 led strip light manufacturer from China, you need to look for a reliable supplier
Here are some experiences and basics knowledge about SMD3528 led strip light.
This is guide is good for you.
What is SMD3528 led strip light?
SMD3528 led strip light is made by SMD3528 led chips.

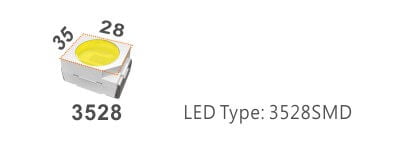

The size of SMD528 is 3.5MM*2.8MM, 0.06W/PCS,6-8lm/pcs.
SMD3528 led strip light is a very long used history led strip light.
It is widely using in-home lighting, cabinet lighting, car lighting, etc.
Where are SMD3528 led strip light most suitable using in?
From the date sheet we know SMD3528 power is small,0.06w/pcs,6-8lm/pcs.
Normally we have 60led/m-4.8w/m, 120led/m-9.6w/m,240led/m-19.2w/m.
Power per meter, not big means, not very brightness. Then we use less in main lighting.
SMD3528 led strip light is used more in small place detail lighting.
Such as cabinet lighting, shelf lighting, cupboard lighting, wardrobe lighting, etc.
SMD3528 VS SMD3014 VS SMD2835 VS SMD5630 VS SMD5050
Different led chips, the size, wattage, lumens are different. We can see from the following table. Then it will easy for us to know the difference.
| Lightstec LED | Dimensions | Chip Surface Area | Lumen Flux | Power Draw |
|---|---|---|---|---|
| SMD3528 LED | 3.5 mm x 2.8 mm | 9.8 mm² | 6-8 lumens | 20-30 mA @ 2.8-3.4 Volts |
| SMD2835 LED | 2.8 mm x 3.5 mm | 9.8 mm² | 20-28lumens | 60 mA @ 2.8-3.4 Volts |
| SMD5050 LED | 5.0 mm x 5.0 mm | 25 mm² | 16-22 lumens | 60 mA @ 2.8-3.4 Volts |
| SMD5630 (5730) LED | 5.6 mm x 3.0 mm | 16.8 mm² | 45-50 lumens | 150 mA @ 2.8-3.4 Volts |
| SMD3014 LED | 3.0 mm x 1.4 mm | 4.2 mm² | 9-11 lumens | 30 mA @ 2.8-3.4 Volts |
Does SMD3528 LED strip light to have waterproof led strip light?
We offer different waterproof grade SMD3528 led strip light.
IP20 / IP33 -Not waterproof, this only use for indoor
IP55- Silicon surface dropping waterproof. This is changing the lighting vision. We also use this indoor.
IP65- Silicon tube waterproof. We suggest using this raining but don't drop into the water.
IP67/68 - This can use for swimming pool
You can check our other post about 防水LEDストリップライト。
Do you offer dimmable SMD3528 led strip light?
Now many lighting projects needs dimmable function. All of our SMD3528 led strip lights are constant voltage led strip light.
And we can use the different dimmable controller to dim the SMD3528 led strip light。
Now, we also can use the dimmable power supply to dim the SMD3528 led strip light.
Here I show you how to dim the strip light. You can check post How to dim led strip light。
How to connect SMD3528 led strip light to the power supply?
When we are using the SMD3528 led strip light, we need to use a led power supply.
If some of the lighting projects need dimming function, we also need to connect to the dimmable power supply or dimmable controller.
Here we show you how to connect the strip light to the power supply.
