RGB Color Change Series
Epistar SMD5050 RGB LED STRIP LIGHT
IP33、IP55、IP65、IP67 防水バージョン
入力DC12V、DC24V定電圧版
オプションのさまざまなタイプの SMD5050 LED ストリップ
CE ETL ROHS
Professional RGB LED Light Strips Manufacturer
Looking for RGB LED strip light? Lightstec offers 30LED/M,60LED/M color change LED strip light for both indoor and outdoor use.5050 constant voltage LED strip light series. Lightstec 5050 LEDストリップライト series is high brightness led strip light. 60ma,18-20lm each led. Ra80 and Ra90 were available. DC12V and DC24V vision. 60led/m 14.4W LED strip light is widely used in hotels, shopping malls, kitchen illuminating. The customized length and customized design are warmly welcome.
| モデル番号 | LT-5050RGB30R-W12 | LT-5050RGB60R-W12 | LT-5050RGB60R-W24 |
|---|---|---|---|
| SMDタイプ | Epistar 5050 RGB | エピスター5050RGB | エピスター5050RGB |
| 入力電圧 | DC12V | DC12V | DC24V |
| LEDの数 | 30LED/m | 60LED/m | 60LED/m |
| 電力/分 | 7.2W/M | 14.4W/M | 14.4W/M |
| 最大電流/LED | 60mA | 60mA | 60mA |
| SMD LEDの間隔 | 33.3mm | 16.6MM | 16.6MM |
| ルーメン/m | 180LM | 360LM | 360LM |
| CRI(Ra) | .- | .- | .- |
| 切断可能な最小長さ | 100mm | 50mm | 100mm |
| プリント基板の幅 | 10mm | 10mm | 10mm |
| エネルギーグレード | あ | あ | あ |
| 保証 | 3年 | 3年 | 3年 |
| 労働時間 | 30000時間 | 30000時間 | 30000時間 |
| 照射角度 | 120° | 120° | 120° |
| 使用温度 | -20℃～+45℃ | -20℃～+45℃ | -20℃～+45℃ |
Types of RGB LED Strip Lights
簡易比較テクニカルリスト
| モデル番号 | LEDの数 /メートル | LEDの色 利用可能 | 最大出力 /メートル | 入力 電圧 | 最小カット可能 長さ | SMD LED 間隔 | 最大電流 /導かれた | プリント基板の幅 利用可能 |
|---|---|---|---|---|---|---|---|---|
| LT-5050RGB30R-W12 | 30 | RGB | 7.2 | DC12V | 33.3mm | 100mm | 60ma | 10mm |
| LT-5050RGB60R-W12 | 60 | RGB | 14.4 | DC12V | 16.6mm | 50mm | 60ma | 10mm |
| LT-5050RGB60R-W24 | 60 | RGB | 14.4 | DC24V | 16.6mm | 100mm | 60ma | 10mm |
Importing RGB LED Strip Lights From China: The Definitive Buying Guide
RGB led strip lights are used all around us.RGB led strip light can be used in our room ceiling for decoration. It can be used for the advertising board. It can be used for led linear light. And it can be used for entertainment venues.
So when you are sourcing RGB led strip lights from China, you need to know how to choose a high quality and affordable RGB led strip lights.
1、 What is the RGB LED strip light?
2、 How many types of waterproof level RGB LED strip lights do you have?
3、 Do you have rigid RGB LED strip light?
4、 Can I custom make RGB led strip lights kit?
5、 How can I cut and connect the RGB LED strip lights?
6、 How can you control the RGB LED strip lights?
7、 結論
What is the RGB LED strip light?
RGB led strip lights are the LED strip lights use red, green, blue led chips in one led strip light. Someone call this stirp light color changeable LED strip lights,color changing LED strip lights.
RGB led strip lights can be used 5050RGB LED. This is 3 chips in one led.5050RGB led is the most led chips for RGB led strip lights.
RGB led strip lights can be used SMD3528 red color, green color, and blue color separate. This also uses in some economy led strip light. Same led qty in one meter, SMD3528 RGB led strip lights will lower than SMD5050 RGB led strip lights.
RGB led strip lights can be used SMD2835 red color, green color, and blue color. And this can be used side view 3014 red, green, blue color led chips.
All in one, RGB LED strip lights are have 3 colors in one led strip light. You can use different kinds of LED chips.
How many types of waterproof level RGB LED strip lights do you have?
There are 3 types of waterproof level RGB strip light we have.
IP20 or IP33 RGB led strip lights
This is no waterproof RGB strip light. This is for indoor use. It can use for room ceiling, cabinet light, kitchen light, TV backlighting, PC table lighting.
IP55 RGB led strip lights
This is a silicon glue in the RGB strip light surface. It can protect some humidity. And the color effection is better than IP20. Normally it is also for indoor use.
IP65 RGB led strip lights
These RGB led strip lights to have a silicon tube outside. It can protect raining. So this use for the kitchen, shower room, balcony, and veranda.
IP67 RGB led strip lights
This RGB led strip light is made by injection molding. It is made by an extrusion process. This same version is IP65 strip light. But IP67 strip light has glue inside the silicon tube. This is better waterproof than IP65. It can use for swimming pools or other places outside.
Do you have rigid RGB LED strip light?
Rigid RGB led strip lights are make by FR4 PCB. We also have flexible RGB led strip light. This can be used with led aluminum profiles.
Can I custom make RGB led strip lights kit?
Yes, you can select different kinds of RGB led strip light, different RGB controller, different RGB adapter. You can design your own color box for RGB led strip lights。
Custom made RGB led strip light kits are sold most on Amazon, Aliexpress,eBay, Wish, Wal-Mart, HomeDepot.
How can I cut and connect the RGB LED strip lights?
You can see a cut mark on the PCB board. You can use a scissor to cut the RGB strip light you need.
After cutting the strip light, you can use our RGB strip light connector to connect them together.
You can use the RGB connector connect 2 pcs RGB strip light. You also can use the RGB connector with wires to connect the strip light with RGB controller.
How can you control the RGB LED strip lights?
RGB led strip lights can be controlled by different types of RGBコントローラー. When you use the RGB controller, you have to follow the RGB led strip light instructions. That you can easily use the controller.
Types of RGB LED strip light controllers
There are many kinds of RGB led strip controller in the market. Here will show you some types.

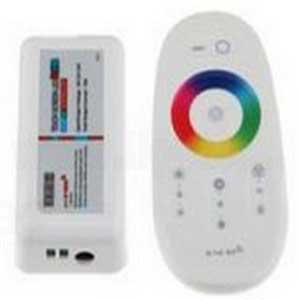

1, Remote controller for RGB LED strips
RF RGB controller is the best sale RGB strip controller. It is easy using. Normally, it has many models inside the controller. You can choose different color changing, different flashing, different running speeds, and you can control the brightness of the strip light.
2, Inline controller for RGB LED strips
Inline controller is normally used for RGB led strip light kits. It is a smaller RGB controller. You can easily connect the connector with strips light and power adapter. Normally the power is not big. You can use for one or two rolls of RGB strip lights.
3, Bluetooth controller for RGB strips
There are new kinds of controllers that can use Bluetooth to control the RGB strip light. You can use your mobile phone to scan the code on the controller. That is an easy way to control the RGB strip light.
4, Mobile phone APP for RGB strip lights
Now many RGB controllers have APP. After installing the APP, you can easily control the RGB strip light without a controller.
5, DMX controller for RGB LED strips
For some big lighting projects, we need to use DMX512 controller for RGB LED strip lights. KTV lighting, building outside lighting.DMX512 is a professional RGB controller,it can give more function for people to control the RGB strip light color changing.
結論
When you are sourcing the RGB led strip light, you need to know the purpose of the application, how to control the RGB strip light, cost of the RGB strip light. Then you can find the best RGB strip light for your lighting project.
