RGBW color change led light strips
Looking for RGBW LED light strips? Lightstec offers RGB+White color change LED light strips. We have 60LED/M, DC12/24V for decoration applications.
IP33, IP55, IP65 Waterproof version
Input DC12V, DC24V Constant Voltage Version
Different types of SMD5050 RGBW led strips for options
LED Brand: Epistar 5050 LED
CE ETL ROHS
Professional RGBW LED Light Strip Manufacturer
5050RGB constant voltage LED strip light series Lightstec 5050 RGBW LED pásové svetlo series which led have red, green, blue and white (3000k,4000k,6000k) color. It can choose different colors for different application areas freely by the RGBW controller. The customized length and customized design are warmly welcome.
| Model No | LT-5050RGBW120R-W24 | LT-5050RGBW60R-W24 | LT-5050RGBW60R-W12 |
|---|---|---|---|
| SMD Type | Epistar 5050 | Epistar 5050 | Epistar 5050 |
| Input voltage | DC24V | DC24V | DC12V |
| LED Q'ty | 120LEDs/m | 60LEDs/m | 60LEDs/m |
| Power/m | 28.8W/M | 19.2W/M | 19.2W/M |
| Max current / LED | 60mA | 60mA | 60mA |
| SMD LED spacing | 16.6MM | 16.6MM | 16.6MM |
| Lumen / m | 2000LM | 700LM | 700LM |
| CRI(Ra) | >90Ra>80Ra | >90Ra>80Ra | >90Ra>80Ra |
| Minim cuttable length | 166.6mm (6LEDs 24V) | 100mm (6LEDs 24V) | 50mm (3LEDs 12V) |
| Šírka PCB | 15mm | 12 mm | 12 mm |
| Energy grade | A | A | A |
| Záruka | 3years | 3years | 3years |
| Working hour | 30000h | 30000h | 30000h |
| Illumination Angle | 120° | 120° | 120° |
| Working temperture | .-20℃~+45℃ | .-20℃~+45℃ | .-20℃~+45℃ |

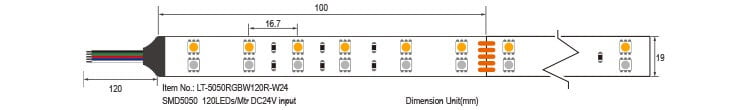

Dimensions
Simple compare technical list
| Model No | LED Q'ty /Meter | LED Color Available | Max Power /Meter | Input Napätie | Min cuttable Length | SMD LED Spacing | Max Current /LED | Šírka PCB Available |
|---|---|---|---|---|---|---|---|---|
| LT-5050RGBW120R-W24 | 120 | RGB+3000K/4000K/6000K | 28.8 | DC24V | 166.6mm | 16.6mm | 60ma | 15mm |
| LT-5050RGBW60R-W24 | 60 | RGB+3000K/4000K/6000K | 19.2 | DC24V | 100mm | 16.6mm | 60ma | 12 mm |
| LT-5050RGBW60R-W12 | 60 | RGB+3000K/4000K/6000K | 19.2 | DC12V | 50MM | 16.6mm | 60ma | 12 mm |
