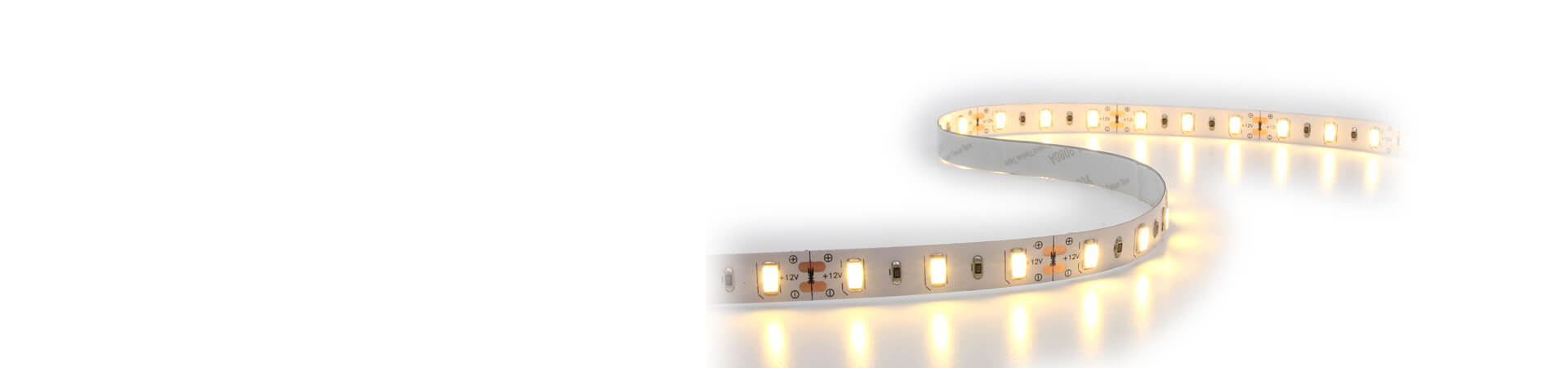

SMD 5630 LED STRIP LIGHTS
2400K, 3000K, 4500, 6500K
높은 연색성 지수(CRI>80 CRI>90)
고휘도: 단일 라인 LED 스트립의 경우 2400lm/m
입력 DC12V, DC24V 정전압 버전
LED Brand: Epistar 5630 LED
Professional 5630 LED Light Strip Manufacturer
Lightstec is one of the leading SMD5630 LED 스트립 조명 manufacturers in China. Lightstec 5630 LED strip light series is hight brightness led strip light. 150ma,50-60lm each led. Ra80 and Ra90 were available. DC12V and DC24V vision. 60led/m 24W LED strip light is widely used in hotels, shopping malls, kitchen illumination. The customized length and customized design are warmly welcome. Check this post: led strip light CRI & Brightness
| 모델 번호 | LT-5630WW60R-W12 | LT-5630WW60R-W24 |
|---|---|---|
| SMD 유형 | Epistar 5630 | Epistar 5630 |
| 입력 전압 | DC12V | DC24V/ |
| LED 수량 | 60LED/m | 60LED/m |
| 힘/m | 12중량/분 | 24주/분 |
| 최대 전류 / LED | 60mA | 60mA |
| SMD LED 간격 | 16.6mm | 16.6mm |
| 루멘/m | 2000-2400LM | 2000-2400LM |
| CRI(라) | >90Ra >80일 | >90Ra >80일 |
| 절단 가능한 최소 길이 | 50mm(LED 3개 12V) | 100mm(6LED 24V) |
| PCB 폭 | 10mm | 10mm |
| 에너지 등급 | 에이 | 에이 |
| 보증 | 3년 | 3년 |
| 근무 시간 | 30000시간 | 30000시간 |
| 조명 각도 | 120° | 120° |
| 작동 온도 | .-20℃~+45℃ | .-20℃~+45℃ |
Types of 5630 LED Strip Lights

간단한 비교 기술 목록
| 모델 번호 | LED 수량 /미터 | LED 색상 사용 가능 | 최대 전력 /미터 | 입력 전압 | 최소 절단 가능 길이 | SMD LED 간격 | 최대 전류 /주도의 | PCB 폭 사용 가능 |
|---|---|---|---|---|---|---|---|---|
| LT-5630WW60R-W24 | 60 | 2400-8000K, 빨간색, 녹색, 파란색 | 24 | 24 | 100mm | 16.66mm | 150ma | 10mm |
| LT-5630WW60R-W12 | 60 | 2400-8000K, 빨간색, 녹색, 파란색 | 24 | 12 | 50mm | 16.66mm | 150ma | 10mm |
5630 LED 스트립 조명 액세서리
비방수형 LED 스트립 라이트 커넥터
+ 2핀 코너 - 단색 커넥터
2핀 무선 단일 색상 커넥터
L-2핀-코너-단색 커넥터
T-2핀-코너-단색 커넥터
2핀 더블 헤드 커넥터 단색
암수 커넥터
2핀 무선 커넥터 n8bb
LED 스트립 홀드 클립
방수 유형 Led 스트립 라이트 커넥터
2핀 무선 커넥터 단색 방수
2핀 단일 헤드 커넥터 방수
LED방수-DC커넥터 방수
실리콘 클립
How To Choose SMD5630 Led Strip Light? (The Definitive Buying Guide)
What is SMD5630 led strip light?

SMD5630 led strip light is made by SMD5630 led and surface mounting in a flexible PCB board.
Normally, SMD5630 led strp light have 60led/m,120led/m.DC12V and DC24V available.
And in the market have SMD5730 led strip light. That is almost the same. Only the size 1mm different. This can use the same PCB.
What are the benefits of SMD5630 led strip light?
SMD5630 led is 0.5w/pcs and the brightness is 55-60LM pcs. That means the lumen output is higher than SMD3528 led, SMD5050 led.
So we can use SMD5630 led strip light in the place where need higher lumen place.
In another hand, higher power means the heat output also high. We normally request clients using the aluminum profile as a heat sink. Otherwise, SMD5630 led strip light will easily damage because of the higher heat.
How to install SMD5630 led strip lights in our home kitchen?
Now many homes are using SMD630 led strip light to light. To install a led strip light is easy for us. Here we can find a post in WIKIHOW to know how to install led strip light at home.
Step 1: Measure the length of SMD5630 led strip light you need
![]()

Step 2:Cut the SMD5630 led strip light the length you need

Step 3:Connect SMD5630 led strip light with quick connector

soldering a cable to the SMD5630 led strip light if you don't have a fast connector

Step 4:Clean the surface when you are installing your SMD5630 led strip light

Step 5:Install your SMD5630 led strip light to your chosen surface

Step 6: Connect your SMD5630 led strip light to the led power supply via the quick connector or wire.

What is the different from SMD5630,SMD5050,SMD3528?
We can see the different from the table as below:

| 주도의 | 치수 | 칩 표면적 | 루멘 플럭스 | 전력 소모 |
|---|---|---|---|---|
| 3528 LED | 3.5mm x 2.8mm | 9.8mm² | 6-8 루멘 | 20-30mA @ 2.8-3.4볼트 |
| 5050 LED | 5.0mm x 5.0mm | 25mm² | 16-22 루멘 | 60mA @ 2.8-3.4V |
| 5630 (5730) LED | 5.6mm x 3.0mm | 16.8mm² | 45-50 루멘 | 150mA @ 2.8-3.4V |
