SMD 5630 LED STRIP LIGHTS
2400K, 3000K, 4500, 6500K
Visoki indeks reprodukcije boja (CRI>80 CRI>90)
Visoka svjetlina: 2400lm/m za jednolinijsku LED traku
Ulaz DC12V, DC24V verzija s konstantnim naponom
LED Brand: Epistar 5630 LED
Professional 5630 LED Light Strip Manufacturer
Lightstec is one of the leading SMD5630 LED traka svjetla manufacturers in China. Lightstec 5630 LED strip light series is hight brightness led strip light. 150ma,50-60lm each led. Ra80 and Ra90 were available. DC12V and DC24V vision. 60led/m 24W LED strip light is widely used in hotels, shopping malls, kitchen illumination. The customized length and customized design are warmly welcome. Check this post: led strip light CRI & Brightness

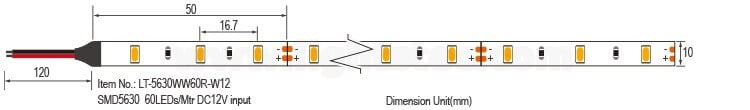

| Model br | LT-5630WW60R-W12 | LT-5630WW60R-W24 |
|---|---|---|
| Vrsta SMD | Epistar 5630 | Epistar 5630 |
| Ulazni napon | DC12V | DC24V/ |
| LED Kol | 60 LED dioda/m | 60 LED dioda/m |
| Snaga/m | 12W/M | 24W/M |
| Maksimalna struja / LED | 60 mA | 60 mA |
| SMD LED razmak | 16,6 mm | 16,6 mm |
| Lumen / m | 2000-2400 LM | 2000-2400 LM |
| CRI(Ra) | >90Ra >80 dana | >90Ra >80 dana |
| Minimalna duljina za rezanje | 50 mm (3 LED diode 12V) | 100mm (6LEDs 24V) |
| PCB širina | 10 mm | 10 mm |
| Energetski stupanj | A | A |
| Jamstvo | 3 godine | 3 godine |
| Radno vrijeme | 30000h | 30000h |
| Kut osvjetljenja | 120° | 120° |
| Radna temperatura | .-20℃~+45℃ | .-20℃~+45℃ |
Types of 5630 LED Strip Lights
Jednostavna usporedba tehničkog popisa
| Model br | LED Kol /Metar | LED boja na raspolaganju | Maksimalna snaga /Metar | Ulazni Napon | Min. za rezanje Duljina | SMD LED Razmak | Maksimalna struja /LED | PCB širina na raspolaganju |
|---|---|---|---|---|---|---|---|---|
| LT-5630WW60R-W24 | 60 | 2400-8000K, crvena, zelena, plava | 24 | 24 | 100 mm | 16.66mm | 150ma | 10 mm |
| LT-5630WW60R-W12 | 60 | 2400-8000K, crvena, zelena, plava | 24 | 12 | 50 mm | 16.66mm | 150ma | 10 mm |
5630 Pribor za LED trake
Nevodootporni tipovi konektora LED trake za svjetlo
+ 2pin-Corner-jednobojni konektor
2pin-bežični-jednobojni-konektor
L-2pin-kutni konektor u jednoj boji
T-2pin-Corner-jednobojni konektor
2pin-dvostruki-konektor jednobojni
Ženski-muški-konektor
2pin-Wireless-konektor n8bb
Stezaljke za držanje LED trake
Vodootporne vrste konektora za svjetlo s LED trakom
Jednobojni vodootporan dvopinski bežični konektor
2pin-konektor s jednom glavom-vodootporan
LED-vodootporan-DC-konektor vodootporan
Silikonske kopče
How To Choose SMD5630 Led Strip Light? (The Definitive Buying Guide)
What is SMD5630 led strip light?

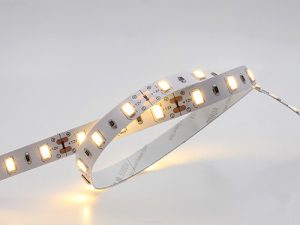

SMD5630 led strip light is made by SMD5630 led and surface mounting in a flexible PCB board.
Normally, SMD5630 led strp light have 60led/m,120led/m.DC12V and DC24V available.
And in the market have SMD5730 led strip light. That is almost the same. Only the size 1mm different. This can use the same PCB.
What are the benefits of SMD5630 led strip light?

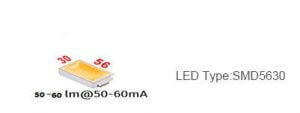

SMD5630 led is 0.5w/pcs and the brightness is 55-60LM pcs. That means the lumen output is higher than SMD3528 led, SMD5050 led.
So we can use SMD5630 led strip light in the place where need higher lumen place.
In another hand, higher power means the heat output also high. We normally request clients using the aluminum profile as a heat sink. Otherwise, SMD5630 led strip light will easily damage because of the higher heat.
How to install SMD5630 led strip lights in our home kitchen?
Now many homes are using SMD630 led strip light to light. To install a led strip light is easy for us. Here we can find a post in WIKIHOW to know how to install led strip light at home.
Step 1: Measure the length of SMD5630 led strip light you need

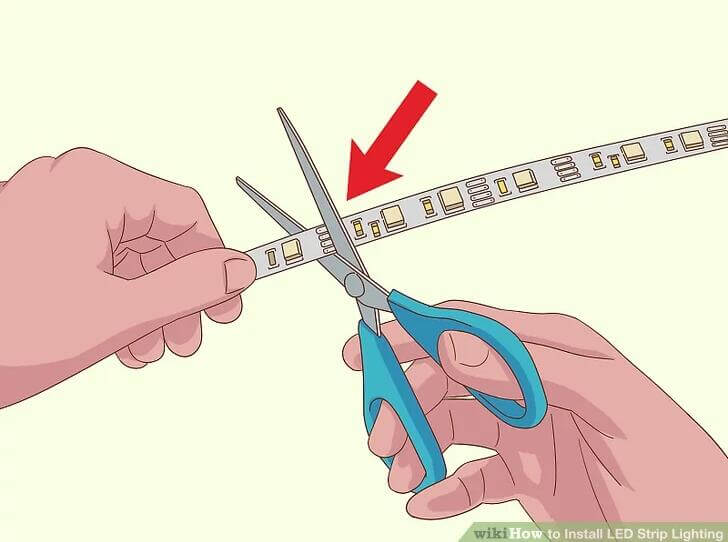

Step 2:Cut the SMD5630 led strip light the length you need
Step 3:Connect SMD5630 led strip light with quick connector

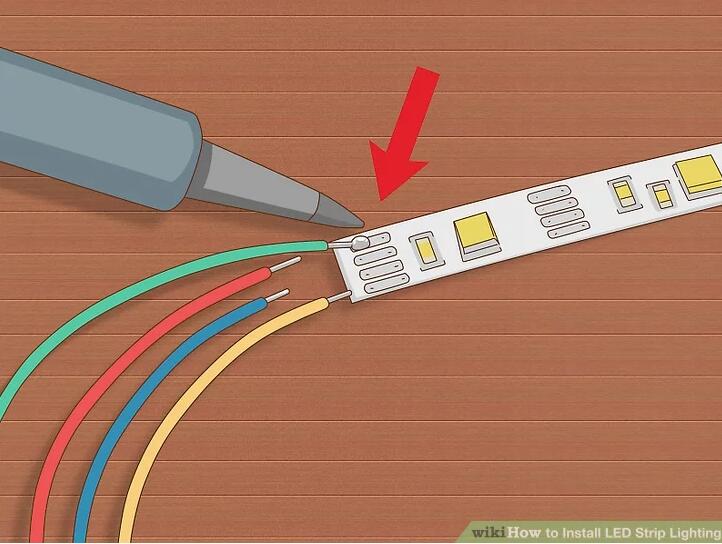

soldering a cable to the SMD5630 led strip light if you don't have a fast connector
Step 4:Clean the surface when you are installing your SMD5630 led strip light

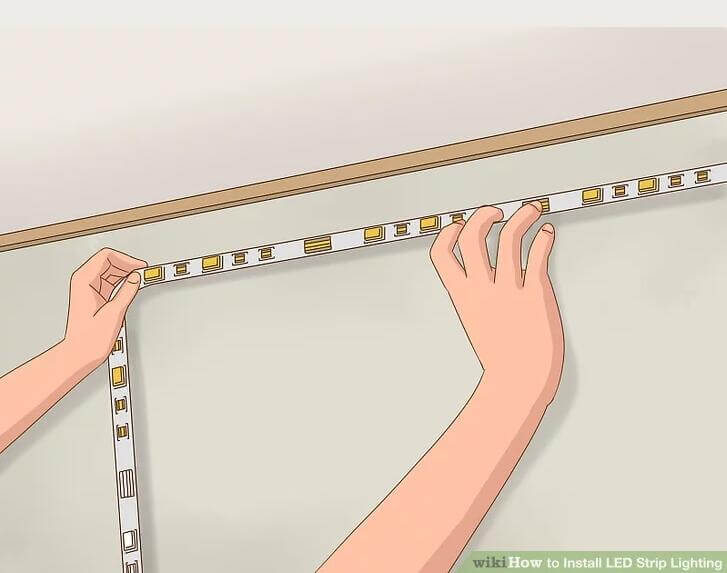

Step 5:Install your SMD5630 led strip light to your chosen surface
Step 6: Connect your SMD5630 led strip light to the led power supply via the quick connector or wire.
What is the different from SMD5630,SMD5050,SMD3528?
We can see the different from the table as below:
| LED | Dimenzije | Površina čipa | Lumenski tok | Povlačenje energije |
|---|---|---|---|---|
| 3528 LED | 3,5 mm x 2,8 mm | 9,8 mm² | 6-8 lumena | 20-30 mA pri 2,8-3,4 volta |
| 5050 LED | 5,0 mm x 5,0 mm | 25 mm² | 16-22 lumena | 60 mA pri 2,8-3,4 volta |
| 5630 (5730) LED | 5,6 mm x 3,0 mm | 16,8 mm² | 45-50 lumena | 150 mA pri 2,8-3,4 volta |
