LED sheets have emerged as a game-changer for commercial, architectural, and creative lighting applications. This guide explores their functionality, benefits, installation, and real-world applications — with Lightstec’s premium product lineup.
Berkaitan: baca kami led neon flex guide.
What Are LED Sheets?

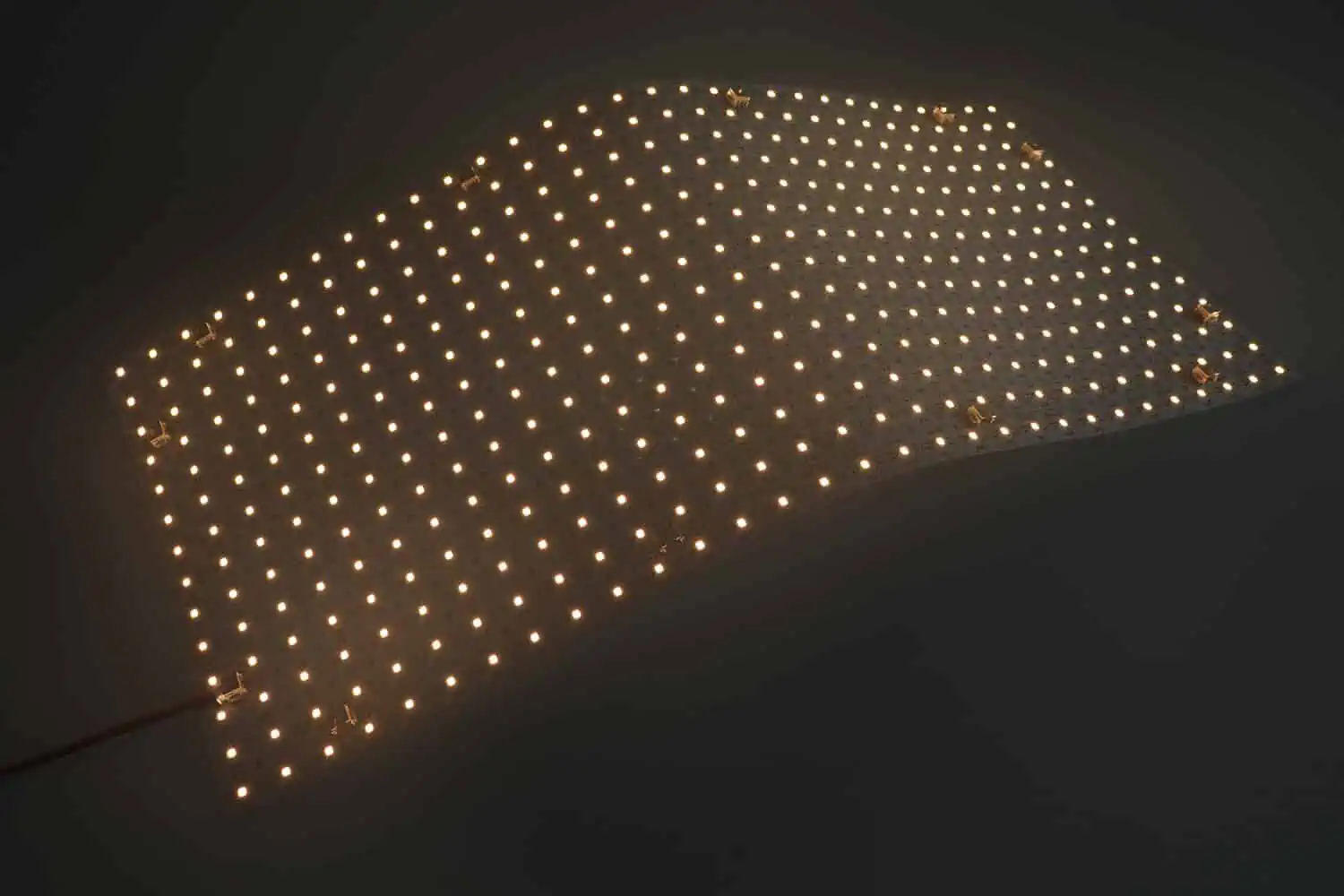

LED sheets are ultra-thin, flexible panels embedded with LED chips, designed for backlighting, signage, and decorative lighting. Unlike rigid fixtures, they can be cut, bent, or folded to fit any shape — from retail displays to art installations.
How Do LED Sheets Work?
When powered, electrons (N-type) and holes (P-type) meet at the junction.
Energy is released as light when electrons and holes recombine — 95% energy-to-light conversion.
Types of LED Sheets
Single Color
2700K warm to 6000K cool · 3550 LEDs/m² · 24VDC · 11-33W
Ambient lighting, architectural accents, task lighting.

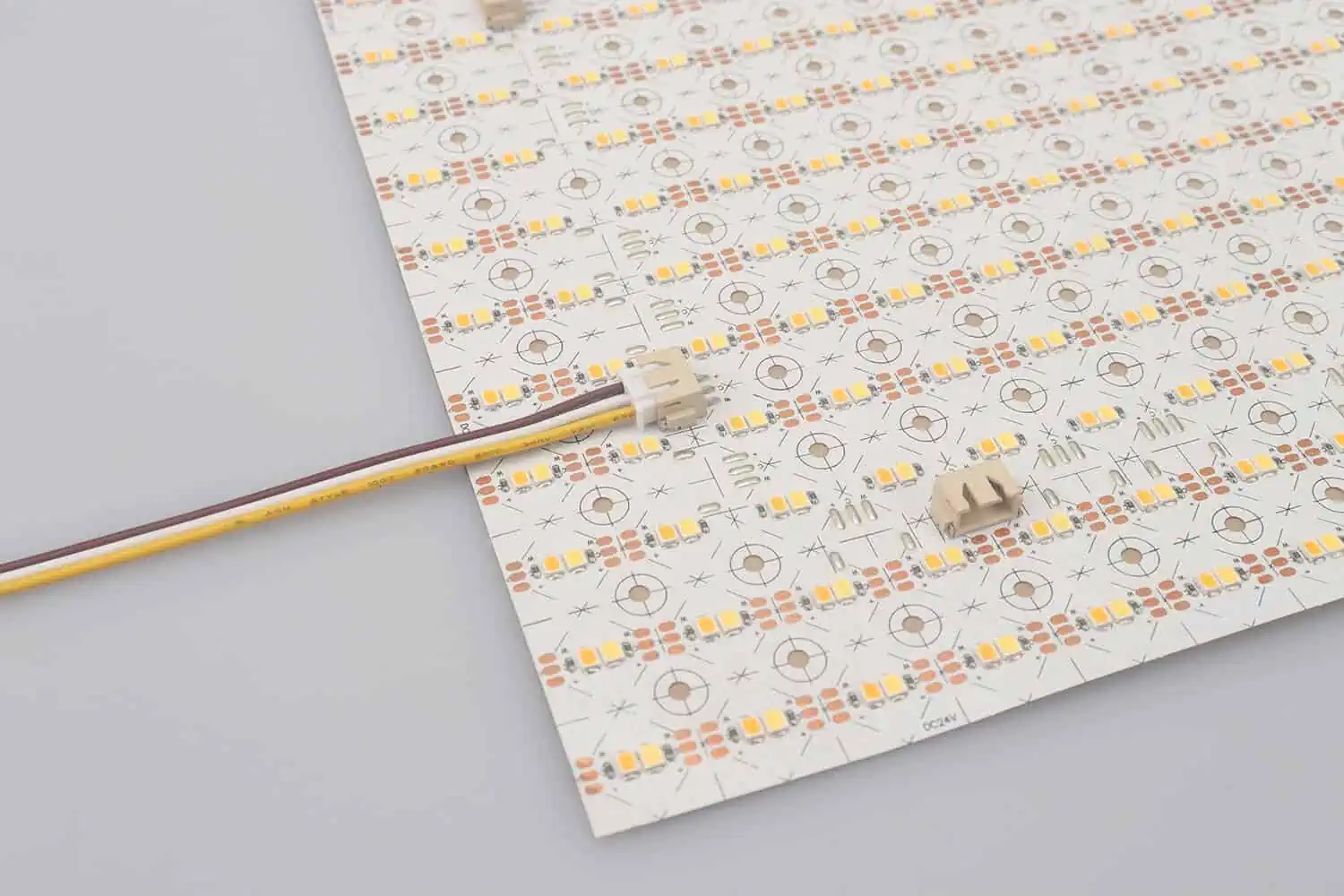

Tunable White
Switch 2700K-6000K · 22-66W per sheet
Offices, homes, hospitality for mood-based lighting.
RGBW
Vibrant colors + pure white · 11-33W
Entertainment venues, stage lighting, festivals.
Addressable
Pixel control for patterns · sync with music/sensors
Themed events, interactive displays, facades.
LED Sheets vs. Traditional Lighting
| Criteria | LED Sheets | Incandescent/Fluorescent |
|---|---|---|
| Kecekapan Tenaga | 95% energy-to-light conversion | 5% efficiency; 95% heat waste |
| Lifespan | 25,000-100,000 hours | 1,000-15,000 hours |
| Cost | Higher upfront, lower long-term | Low upfront, high operational |
| Color Range | 2200K-6000K + RGB options | Limited CCT (2700K-4100K) |
LED Sheets vs. SMD/COB LED Strips
| Ciri | LED Sheets | SMD/COB Strips |
|---|---|---|
| Shape | Flat, paper-like | Rope-like, flexible |
| Kecerahan | Uniform over large areas | Variable based on density |
| Applications | Backlighting, ceilings, signage | Accent lighting, under-cabinet |
Installation Guide
Clean surfaces with a damp cloth; ensure dryness before installation.
Cut with scissors along marked lines; use solderless connectors or soldering.
Adhesive (3M VHB), screws/nails for ceilings, or magnets for metal surfaces.
Match 24VDC, connect polarity correctly, use DALI/0-10V/DMX for dimming.
Applications Across Industries
Choosing the Right LED Sheets
Match 24VDC sheets to power supplies; 11-66W options.
Target CRI>90 for accuracy; IP65+ for outdoor use.
Tailor CCT, size, LED spacing, connectors via OEM/ODM.
Look for CE, RoHS (Lightstec-compliant).
Troubleshooting Common Issues
Check wiring, power supply, and dimmer compatibility.
Ensure ventilation; use Lightstec low-heat chips.
Verify RGB channel wiring; replace faulty controllers.
Test voltage with a multimeter; replace damaged sheets.
Lightstec’s Competitive Edge
Premium materials for 100,000-hour lifespan.
Addressable sheets with proprietary software.
5-year warranty + 24/7 technical assistance.
Rapid prototyping for unique projects.
Disyorkan Produk LED Strip
Jalur berkualiti kilang dari Lightstec:
Kesimpulan
LED sheets redefine lighting possibilities with energy efficiency, creativity, and reliability. Ready to transform your space? Contact us today for a free sample or consultation.
